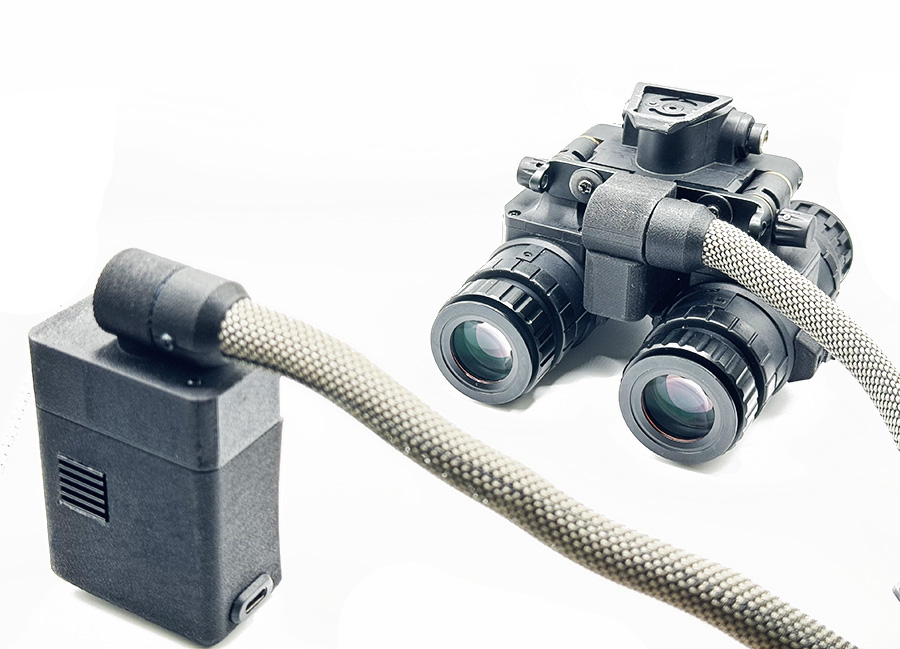

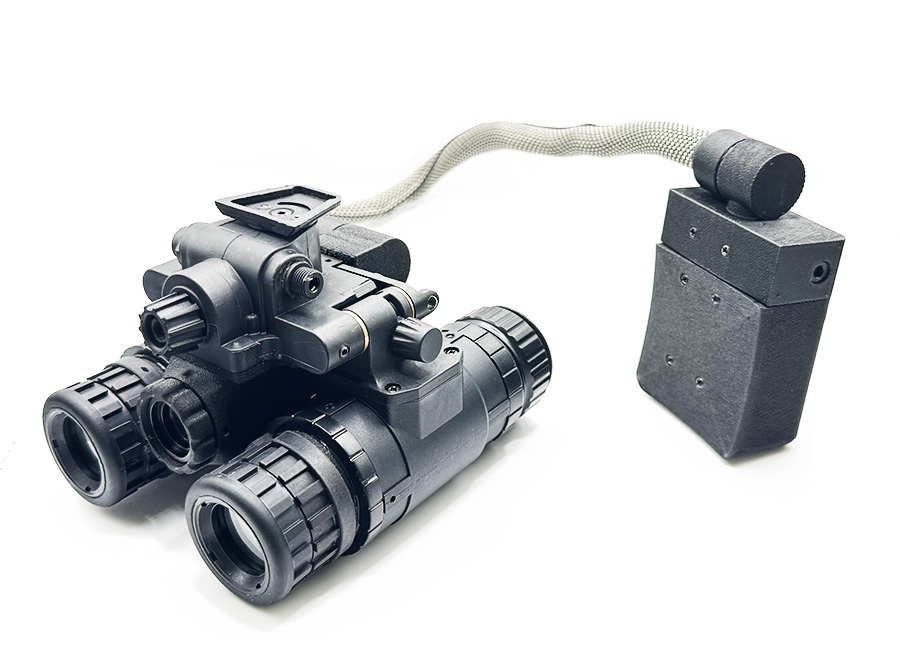

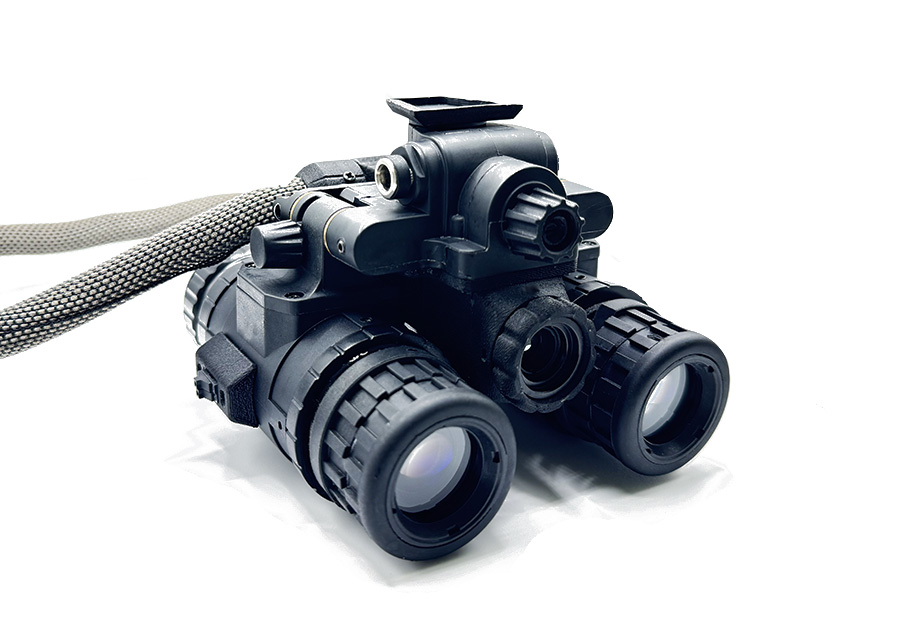

HRS-31 3-Eyed Raven Pro Edition

Thermal / DNVG Binoculars

The HRS-31 Pro Edition is designed for all lighting conditions—day or night, bright or low light—and is resistant to flashlights and laser interference. Featuring 1080P @ 60FPS high-definition imaging with minimal latency, it delivers approximately 70% of the performance of a Gen 2+ analog night vision device without any IR illumination.
(Estimate based on internal benchmarking against NVT5 devices with 1600–1800 FOM and resolution/SNR of 64/25.)
When combined with a 256×192 thermal sensor, the HRS-31 3-Eyed Raven enables long-distance target detection even in complete darkness, where traditional night vision systems become ineffective.

Key Features:

Custom-designed low-light & NIR sensors
  Equipped with large 4 μm × 4 μm pixel size sensors, capable of capturing clear images in ultra-low-light environments (e.g., under moonlight or starlight). Delivers 1280×1080 resolution at 60FPS.

Practical NV Performance
  Achieves ~70% of Gen 2+ performance without IR; 100% with external IR illumination.

True 1:1 digital low-light imaging
  Adjustable lenses and digital imaging maintain depth perception and accurate spatial awareness.

Thermal Vision
  Integrated 256×192 thermal sensor allows detection of heat signatures up to 1 km, delivering 2× magnified thermographic imagery at 50 FPS .

F/1.0 custom optics
  Specially coated to minimize glare and reflections, allowing maximum visible and IR/NIR light transmission.

OLED Display
  Dual 1-inch 1280×1080 OLED screens with white phosphor-style rendering for enhanced detail and reduced eye fatigue.

Ergonomic Design
   * Adjustable eyepieces for varying facial structures and visual acuity
   * Adjustable screen brightness
   * Ultra-lightweight: 470 grams
   * Field of view: 50° diagonal / 40° horizontal / 29° vertical
   * Splash-resistant construction
   * Built-in replaceable lens protectors

Video Output Supports PAL format video output. (DVR recorder not included)

Power System
   * 10,000mAh minimum, 20,00mah or larger power bank recommended (not included) for ~4.5 hours, 9 hours or more of operation. The power bank must have at least two USB ports
   * Backup: Dual CR123A internal batteries for emergency use (~25 minutes runtime).

Designed and assembled in Canada

Materials:
   * Molded nylon pods and bridge

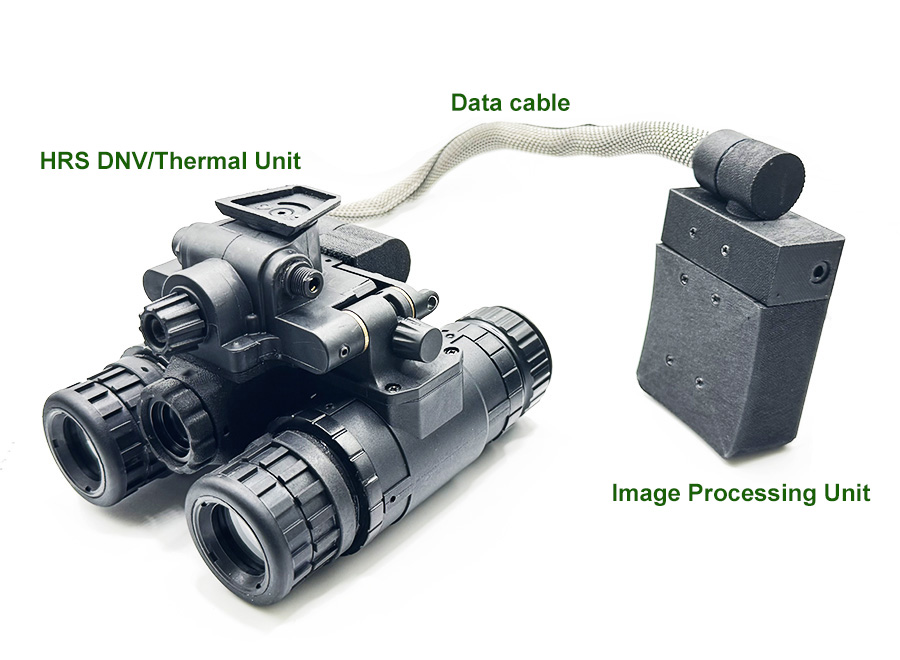

   * 3D-printed image processing unit case
   * 3D-printed thermal sensor housing and other small components

2-Year Warranty

Quick operation guide LINK
